构网电力（新能源发电）

Grid-Forming (GFM)

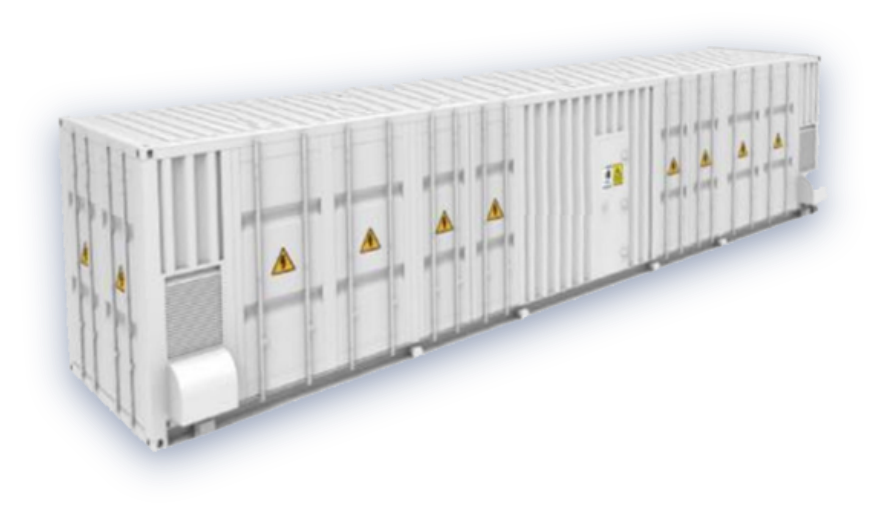

GCC1725kW-424kWh调频构网电源

GCC1725kW-424kWh Grid-Forming Frequency Regulation Power Supply

GCC1725kW调频构网电源将PC、电池、BMS、热管理、配电、升压隔离变、应急照明和消防等优化集成在30英尺集装箱内。储能电源运行在电流源(P/Q)模式，与新能源电源配电房的低压侧母线并联。实现对新能源电源的三相不平衡、晃电、浪涌、谐波、低电压、低功率因数等有源补偿，保证新能源电能满发满送

GCC1725kW Grid-Forming Frequency Regulation Power Supply optimally integrates components such as the PC, battery, BMS, thermal management system, power distribution unit, step-up isolation transformer, emergency lighting, and fire protection within a 30-foot container. The energy storage power supply operates in current source (P/Q) mode and is connected in parallel to the low-voltage busbar of the new energy power distribution room. It provides active compensation for three-phase imbalance, voltage dip, surge, harmonics, low voltage, and low power factor in the new energy power system, ensuring full generation and uninterrupted delivery of renewable energy

能量回收

Regenerative Braking

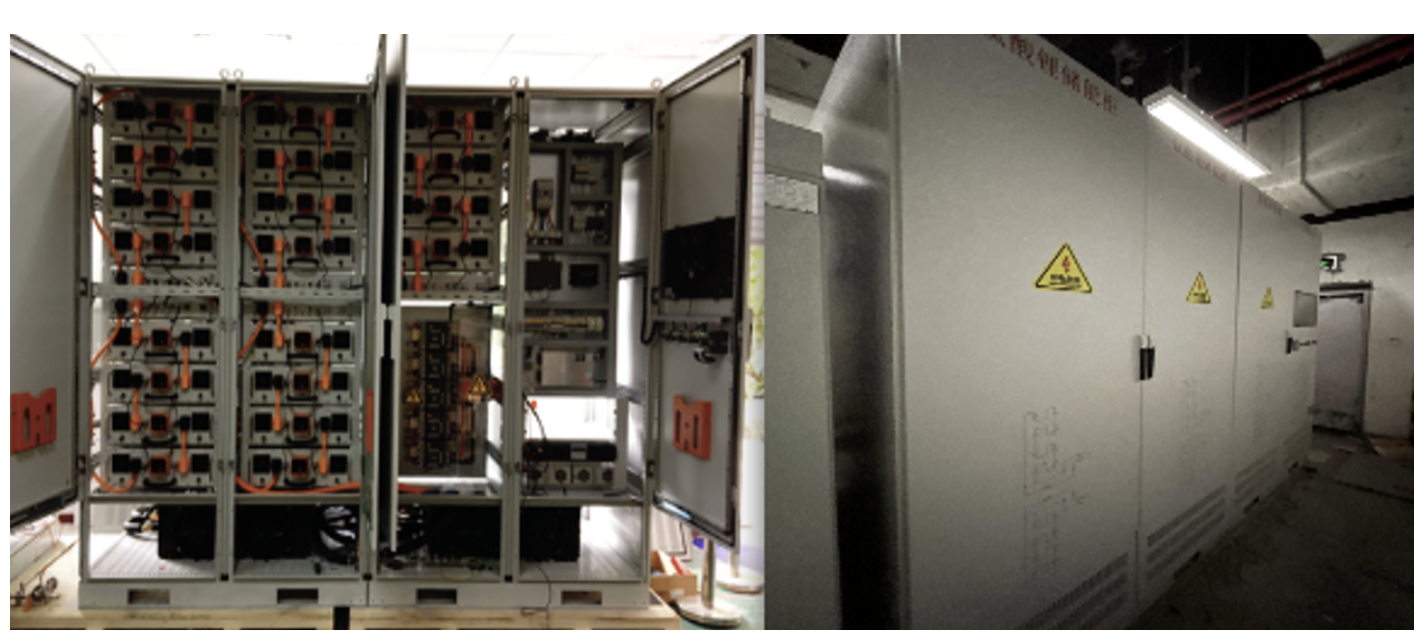

成都地铁能量回收系统

Chengdu Metro Regenerative Braking System

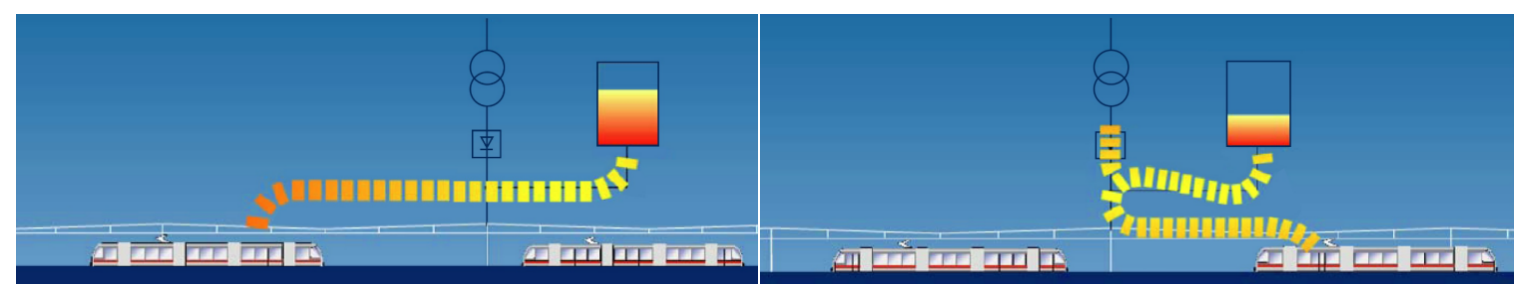

列车进站时，通过储能单元进行列车刹车制动动能的回收与储存，相当于列车刹车给电池充电。列车出站的时候，又通过储能单元将回收的能量进行快速释放，推动列车加速出站，相当于电池放电推动列车

项目案例：2022年在成都地铁4号线南熏大道地铁站进行了安装应用。主要参数：额定功率2MW，峰值功率4MW（20S充+20S放电+80S休息）

When a train enters the station, the braking kinetic energy is recovered and stored via an energy storage unit, which is equivalent to the train's braking process charging the battery. When the train departs, the recycled energy is rapidly released through the energy storage unit, aiding the train in accelerating out of the station, equivalent to the battery discharging to propel the train forward

Project Case: In 2022, the system was installed and applied at Nanxun Avenue Station on Chengdu Metro Line 4. Key parameters: rated power 2MW, peak power 4MW (20s charging + 20s discharging + 80s rest)

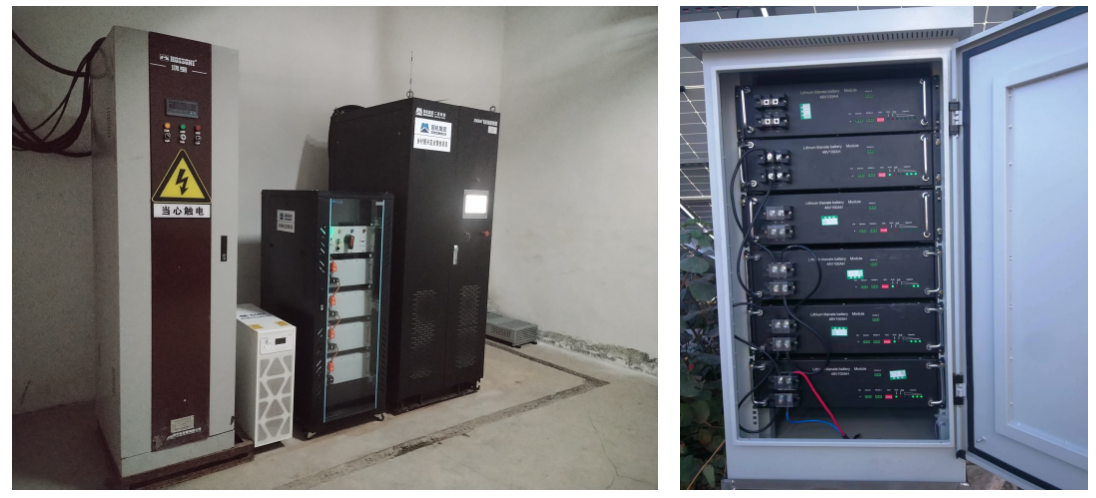

UPS系统

UPS System

适用于医院、银行、数据中心、精密制造、高层建筑（EPS）的高容量大功率（>100KW）交流AC-UPS系统

适用于小型物联网设备、摄像头监控、数据采集等小型设备的小功率（24-36W）直流DC-UPS系统

项目案例：①中国第二重型机械集团公司钛酸锂UPS项目（120KW/75kWh）②西藏高海拔恶劣环境户外桥梁监测钛酸锂UPS备电项目③川西铁路沿线地质灾害监测光储一体钛酸锂UPS项目

Suitable for high-capacity, high-power (>100kW) AC UPS systems in hospitals, banks, data centers, precision manufacturing, and high-rise buildings (EPS).

Suitable for low-power (24-36W) DC-UPS systems in small-scale applications such as IoT devices, camera monitoring, and data acquisition equipment.

Project Cases:① China National Erzhong Group Company Titania Lithium UPS Project (120KW/75kWh) ② Tibet High-Altitude Harsh Environment Outdoor Bridge Monitoring Titania Lithium UPS Backup Power Project ③ Western Sichuan Railway Geological Disaster Monitoring Integrated Solar-Storage Titania Lithium UPS Project

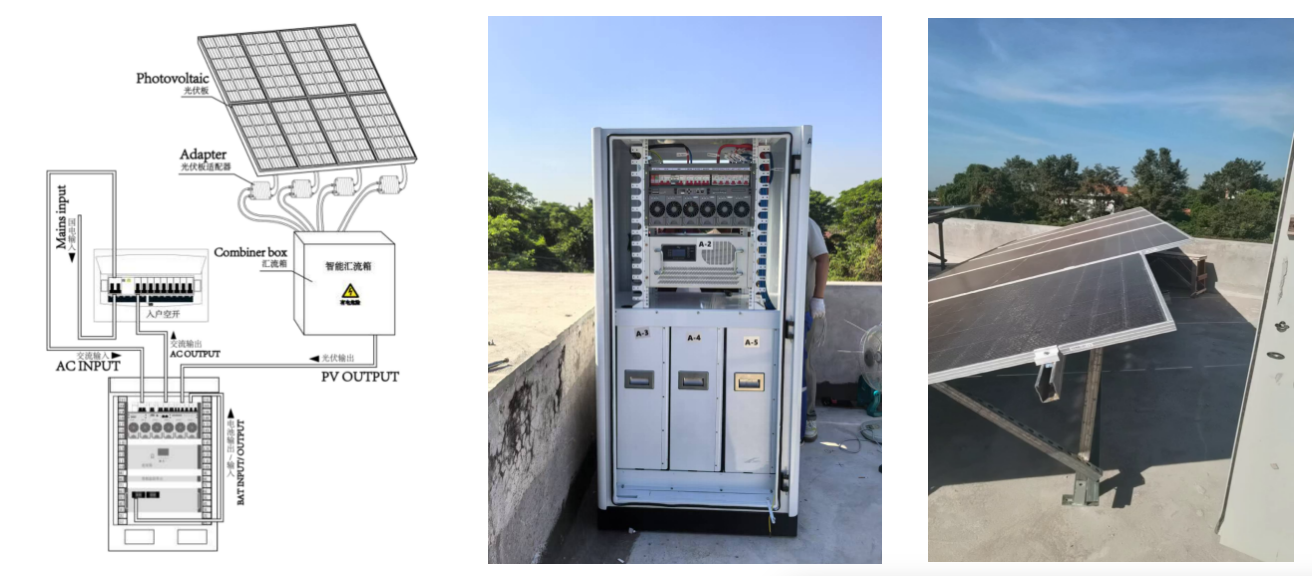

家庭（别墅）光伏+储能系统

Solar Energy Storage System for Households (Villas)

适用家庭（别墅）储能应用；系统由光伏组件、汇流箱、嵌入式开关电源、逆变器、电池及柜体外壳组成

光伏、储电自动切换，无需人工操作，单日发电量超过 30KWh,储能容量10~30kWh可配置

Suitable for residential (villa) energy storage applications; the system consists of photovoltaic modules, combiner boxes, embedded switching power supplies, inverters, batteries, and cabinet enclosures

Automatic switching between solar power and energy storage, requiring no manual operation. Daily power generation exceeds 30 kWh, with configurable energy storage capacity ranging from 10 to 30 kWh
